Cypho-150 AIS Receiver

Click image for a larger view

Recommended For:

  • Recreation
  • Coastal Fishing
  • Commercial Fishing
  • Workboats

Find Your Nearest Dealer

Downloads:

Cypho-150 AIS Receiver

Recommended For:

  • Recreation
  • Coastal Fishing
  • Commercial Fishing
  • Workboats

Ask Us a Question

Please fill in the short form below with your question, either about the Cypho-150 AIS Receiver, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

Cypho-150 AIS Receiver

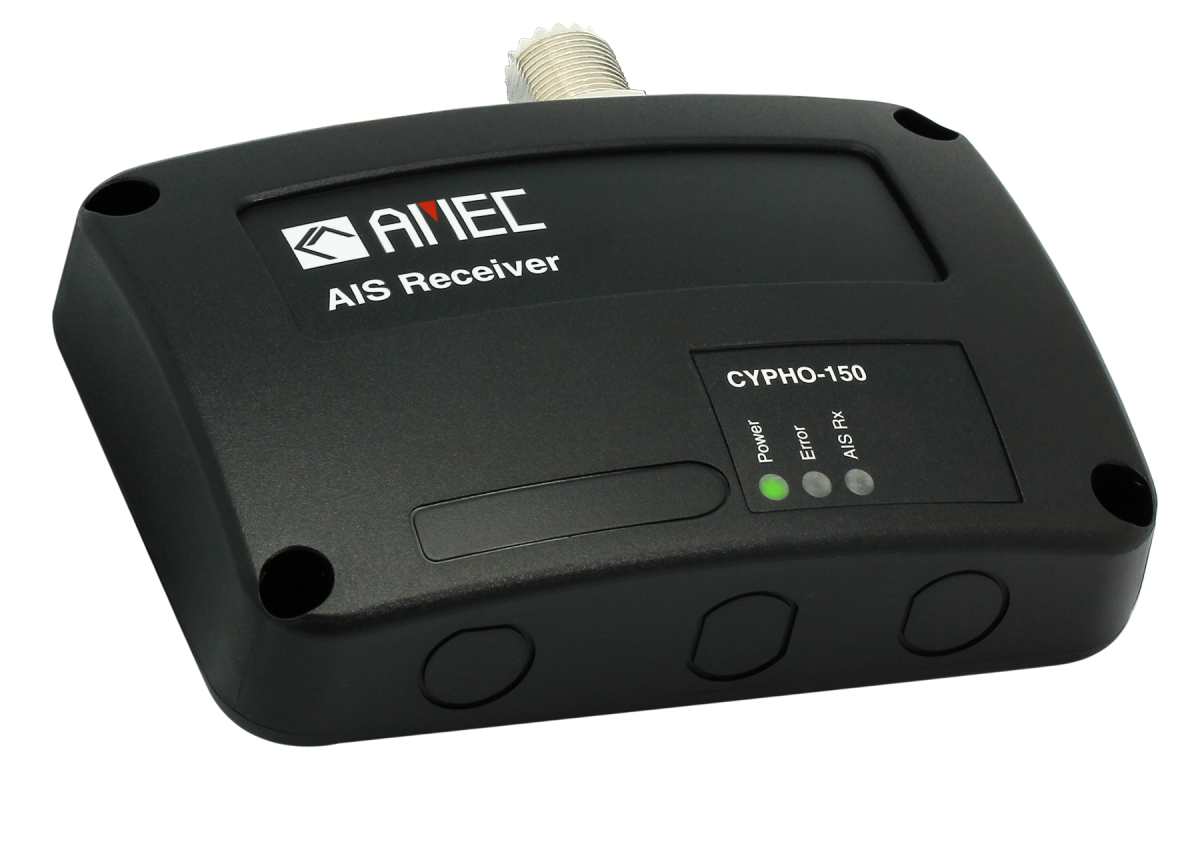

The AMEC CYPHO-150 is an AIS receiver. It receives AIS navigation data from AIS-equipped vessels nearby and the data is utilized to improve navigation safety. CYPHO-150 is designed to inter-operate with AIS Class A or Class B transponders, or any other AIS station operating on the AIS VHF data link.

Dual AIS Receiver

CYPHO-150 is built with two parallel AIS receivers in one box. The default frequencies are standard marine VHF AIS channels, i.e. 161.975 and 162.025 MHz.

Dynamic Vessel Information

Having CYPHO-150 AIS receiver on board, not only can you monitor the status of the vessels in the surrounding area, but also receive the dynamic information (position, speed, SOG, etc.), static information (ship name, MMSI, call sign, etc.), and voyage related information (cargo type, destination, etc.) from any vessels nearby that are equipped with AIS transponders.

NMEA Compatibility

Equipped with standard USB and NMEA0183, CYPHO-150 allows connectivities to most available peripherals in the market. Through USB, users are able to view AIS information on their preferred navigation chart software on their PCs or notebooks.

Compliant

CYPHO-150 is IPX2 water resistant providing acceptable protection against water. It complies with international IEC 60945 standard and has gained CE/FCC conformity.

With the Camino 105 you will make a smart choice to ensure a happy and safety journey.

Key Features

  • Able to receive all AIS information from Class A, Class B, Base Station, AIS AtoN, AIS SART, etc.
  • Compact size, robust housing, easy installation Capable of connecting to chartplotter or PC
  • Built-in VHF antenna splitter with low insertion loss (CYPHO-150S only)
  • Designed with sophisticated dual-channel receivers
  • Field-proved exceptional receiving sensitivity performance
  • Supplied with user-friendly AMEC AIS Viewer software for PC
