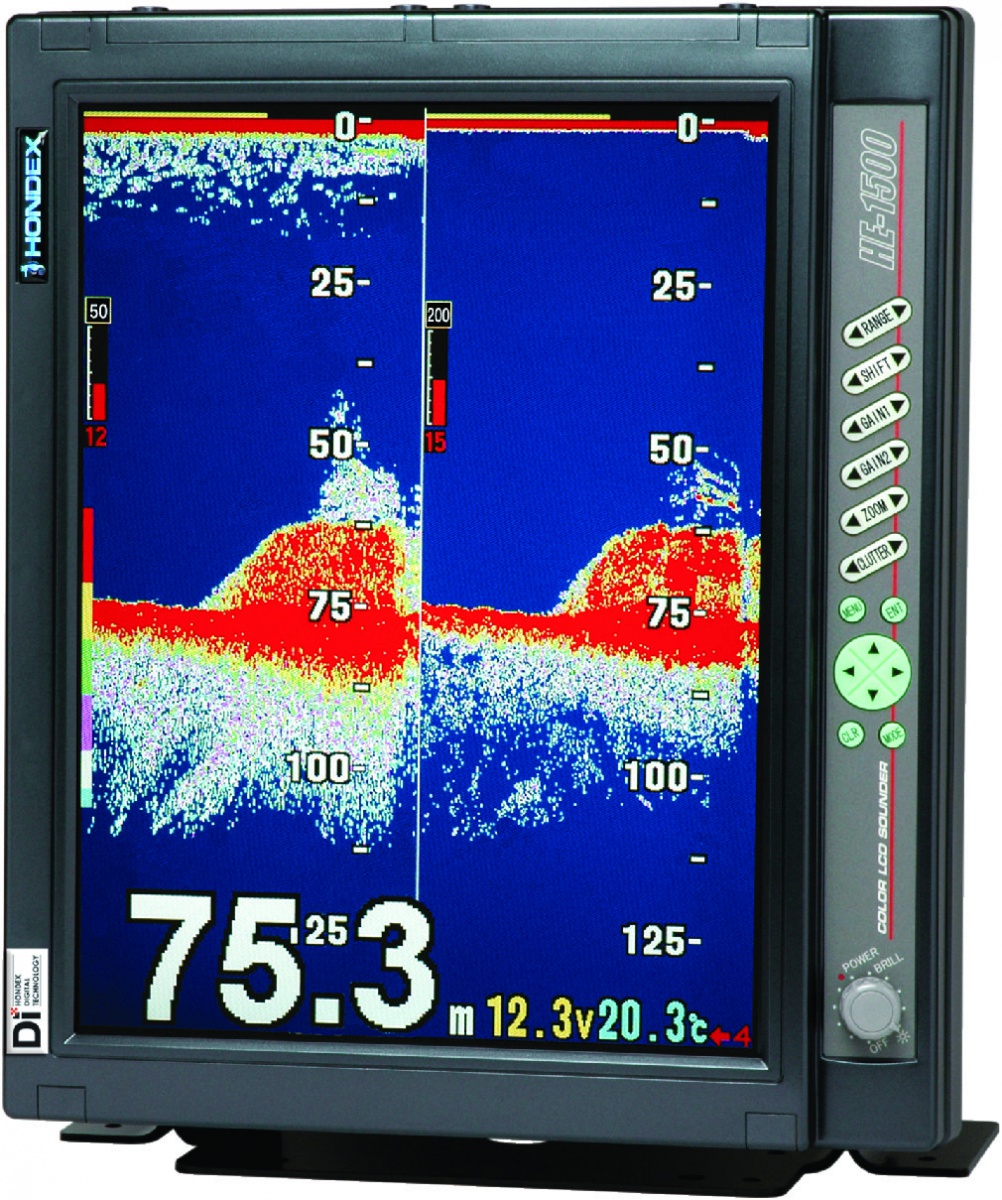

Hondex HE-1500Di

The HE-1500Di is a variable frequency Echosounder with a large 15" Colour TFT Display. The Di series introduces the latest development in echosounder technology, direct digital conversion. This allows optimized filtering even for weak signals as well as deeper detection for deep water and higher resolution image for shallow water.

The HE-1500Di is ideal for retrofit installations, as this sounder is designed to connect to your existing transducer. As a variable frequency we can match to transducers from 28 to 200kHz and power outputs of 1 to 5 kW.

The picture can be presented in Landscape or Portrait mode on the high quality 15 inch colour LCD screen.

Designed for professional fishermen, the HE-1500Di, gives you a cost effective solution for skippers requiring high performance, high definition screen and reliability at an affordable price.

Di Features

Dual Display for the same frequency: Different gain settings are possible for single frequency image by splitting the image of single frequency to two different screens

Whole Display Gain adjustment: Gain adjustment is applied to the whole of the image on the screen.

Variable Frequency: The Di series is designed to connect with your existing transducer.

Specifications

  • Display: 15" Colour TFT LCD
  • No. of Pixels: 640 x 480
  • Operating Voltage: 11-35V DC
  • Power Consumption: 36W
  • Display Style: Portrait, landscape & Reverse
  • Weight: Approximately 7kg
  • Waterproof: IPX4
  • Output Power: 1 to 5kW (depending on Transducer)
  • Frequency: Dual Frequency from, 28 to 200kHz
  • Depth Range: 5 to 2,000 Meters/Fathoms/Brazas, 15 to 6,000 Feet.
  • Max Shift Range: 2,000 to 4,000 Meters/Fathoms/Brazas, 6,000 to 8,000 Feet
  • Auto range/Auto Shift: Off / Range / Shift
  • Auto Gain: Off / Low / High
  • A-Mode: Off / On
  • Fish Alarm: Off / Small / Large
  • Depth Alarm: Off / In range / Outside Range
  • Expansion Mode: Off / Bottom Lock / Auto / Manual
  • Expansion rate: x2, x4, x8
  • Background Colour: 4 Colours
  • Colour Configuration: 5 patterns
  • Depth Unit: Meters / Feet / Fathoms / Brazas
  • Depth Readout: Small / Medium / Large
  • Scale Line: Off / On
  • Super Range: Off / On
  • Clean Echo: Off / Low / Medium / High
  • STC: Low, Medium, High
  • TX Power: Off / Low / High
  • NMEA output: Depth (DBT)
