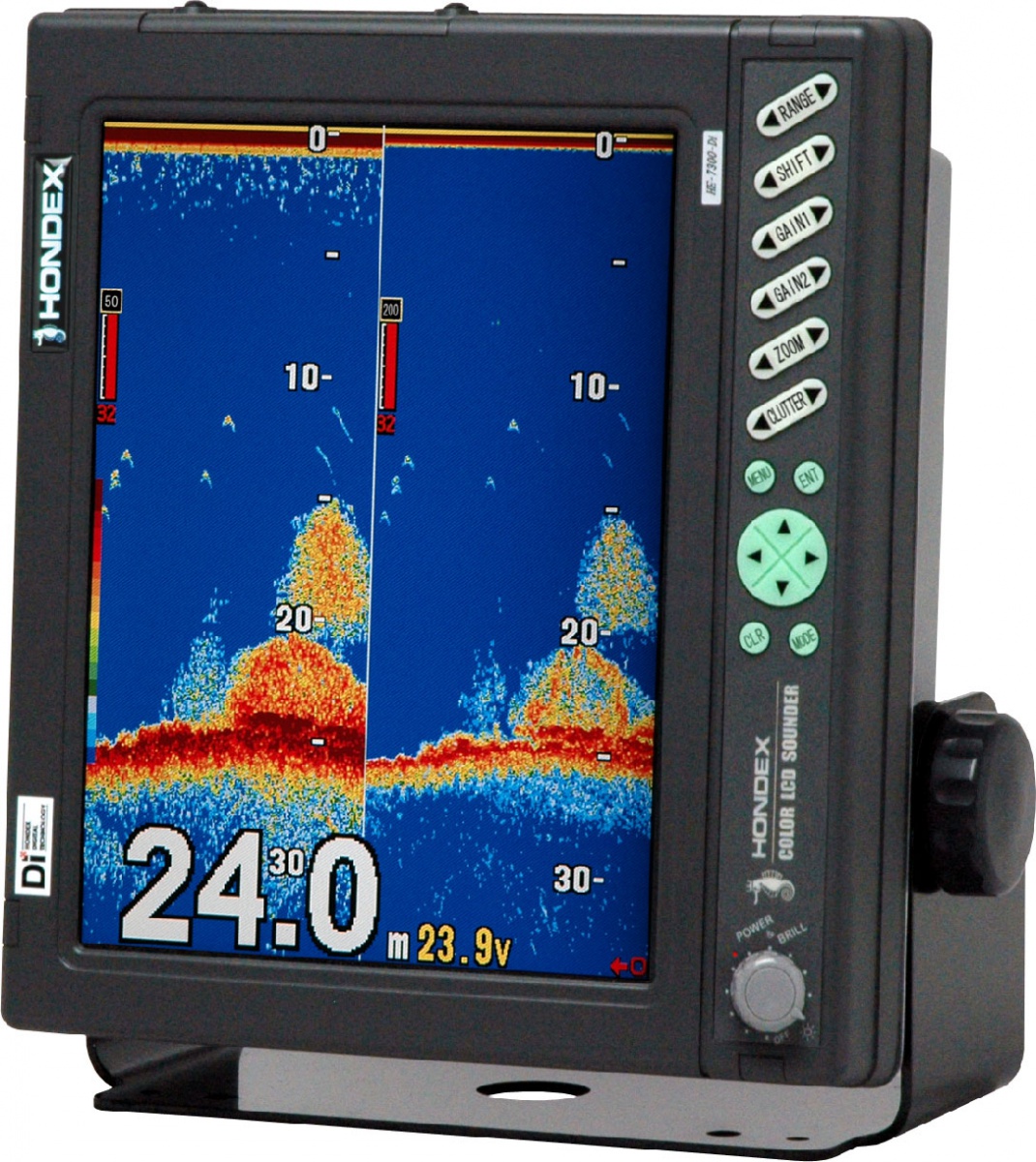

Hondex HE-7300Di

The HE-7300Di is a fully featured echosounder which is ideal for retrofit installations, as this sounder is designed to connect to your existing transducer.

As a variable frequency Echosounder the HE-7300V can be matched to transducers from 28 to 200kHz and power output of 1 to 5 kW.

The picture can be presented in Landscape or Portrait mode on the high quality 10 inch colour LCD screen.

The Di series introduces the latest development in echosounder technology, direct digital conversion. This allows optimized filtering even for weak signals as well as deeper detection for deep water and higher resolution image for shallow water.

Di Features

Dual Display for the same frequency: Different gain settings are possible for single frequency image by splitting the image of single frequency to two different screens

Whole Display Gain adjustment: Gain adjustment is applied to the whole of the image on the screen.

Variable Frequency: The Di series is designed to connect with your existing transducer.

Specifications

  • Display: 10.4" Colour TFT LCD
  • No. of Pixels: 640x480
  • Operating Voltage: 11-35V DC
  • Power Consumption: 24W
  • Display Style: Portrait, Landscape & Reverse
  • Weight: Approx 4kg
  • Waterproof: IPX4
  • Output Power: 1 to 5kW (depending on Transducer)
  • Frequency: Dual Frequency fro, 28, 32, 36, 40, 50, 65, 75, 100, 200kHz
  • Depth Range: 5 to 2,000 Meters/Fathoms/Brazas, 15 to 6,000 Feet.
  • Max Shift Range: 2,000 to 4,000 Meters/Fathoms/Brazas, 6,000 to 8,000 Feet
  • Auto range/Auto Shift: Off / Range / Shift
  • Auto Gain: Off / Low / High
  • A-Mode: Off/On
  • Fish Alarm: Off / Small / Large
  • Depth Alarm: Off / In Range / Out Range
  • Expansion Mode: Off / BL / Auto / Manual
  • Expansion rate: x2, x4, x8
  • Background Colour: 4 Colours
  • Colour Configuration: 5 patterns
  • Depth Unit: Meters / Feet / Fathoms / Brazas
  • Depth Readout: S / M / L
  • Scale Line: Off / On
  • Super Range: Off / On
  • Clean Echo: Off / L/ M/ H
  • STC: Low, Medium, High
  • TX Power: Off / Low / High
  • NMEA output: Depth (DBT)

Designed for professional fishermen, the HE-7300Di is the cost effective solution for skippers requiring high performance and reliability at an affordable price.
