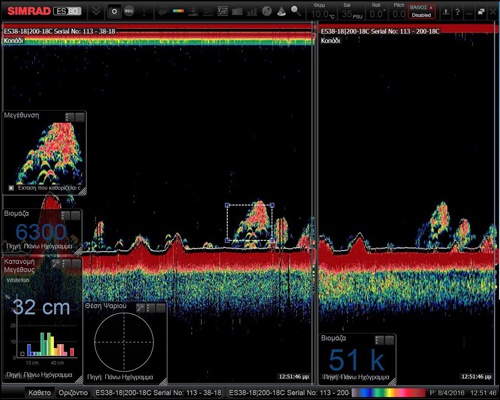

Simrad ES80 Echosounder

Click image for a larger view

Recommended For:

  • Coastal Fishing
  • Commercial Fishing

Find Your Nearest Dealer

Downloads:

Simrad ES80 Echosounder

Recommended For:

  • Coastal Fishing
  • Commercial Fishing

Ask Us a Question

Please fill in the short form below with your question, either about the Simrad ES80 Echosounder, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

Simrad ES80 Echosounder

The latest innovations in computer and signal processing technology are used to create a sophisticated, but also intuitive, Echosounder. It can operate with operational frequencies ranging from 10 to 500 kHz. With a suitable transducer, the ES80 can use frequency sweeps ("chirps") across a range of frequencies.

Key features

  • Split beam operation
  • FM (linear) and CW pulse forms
  • Large dynamic range
  • Low self noise
  • High ping rate
  • Simultaneous transmission of all frequencies
  • Several transceivers can run simultaneously
  • When used in conjunction with the dedicated transducer the Wide band frequency sweep ("chirp") in combination with advanced signal processing gives an exceptionally good echo quality
  • Define and save your own user settings
  • Easy operation with intuitive user interface
  • Clear and easily comprehensive echo data

Wide Band Transceiver

The Wide Band Transceiver (WBT) is provided to transmit the acoustic energy into the water, and to receive the echoes from objects in the water column.

To do this, the transceiver computes and generates the electric signals sent to the transducer to form a transmission - a 'ping'. After each transmission, it will receive the echoes from the targets and/or the seabed. These are filtered and amplified, and then converted to digital format.

The Wide Band Transceiver (WBT) comprises a rugged box providing all necessary transmitter and receiver electronics. The receiver is designed for low noise, and it can handle input signals spanning a very large instantaneous dynamic amplitude range. All targets are correctly measured and displayed.

The WBT is designed for applications where performance is the top priority. It has four 500 W channels that can either work independently with single beam transducers, or together with a split beam transducer. The design is optimized for applications where power consumption and physical size is not critical, typically on board a fishing vessel, a research vessel or a platform with power and communication available through high speed ethernet cable.

The transceiver operates within a large frequency band, and supports single frequencies, frequency sweep ("chirp") and user defined wave forms.

A high quality Ethernet cable connects the transceiver to the Processor Unit. The distance between the Processor Unit and the transceiver can be extended up to maximum 70 meters. If a longer cable is required, cut it in half, and insert an Ethernet switch to provide buffer amplification.

If more than one transceiver is used, a small high capacity Ethernet switch is required to connect each transceiver to the Processor Unit.

The Wide Band Transceiver (WBT) requires an external power supply offering 12 to 15 Vdc, minimum 5 A. A suitable power supply is provided with the delivery
