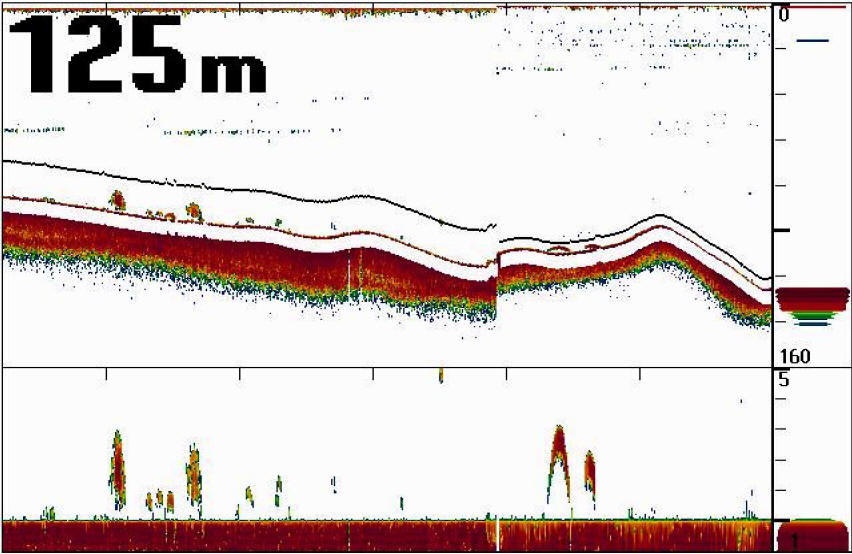

Skipper GDF201

Click image for a larger view

Recommended For:

  • Coastal Fishing
  • Commercial Fishing
  • Workboats

Find Your Nearest Dealer

Downloads:

Skipper GDF201

Recommended For:

  • Coastal Fishing
  • Commercial Fishing
  • Workboats

Ask Us a Question

Please fill in the short form below with your question, either about the Skipper GDF201, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

Skipper GDF201

The GDF201 is based on Skipper's highly successful GDS101 Navigation Echosounder. Designed with fishermen in mind the triple frequency GDF201 is based on a 'black box' concept, allowing you to choose a screen size to suit your wheelhouse and budget.

Skipper echosounders have been used by fishermen around the world for many years and Skipper products have built up a reputation for performance and reliability at an affordable price.The GDF201 with it's 2kW. transmitter; (depending on transducer); easy operation and installation, is a fully featured echosounder suitable for a wide range of applications.

Specification

  • Power Supply: 24v. DC or 110/220v. AC
  • Frequencies: 38, 50 or 200Khz. selected from menu
  • Optional Frequencies: Echomaster Marine can supply other frequencies to order. Please ask for details.
  • Output Power: Approx. 2Kw. dependant on transducer
  • Power Reduction: From 1 to 100%
  • Range Scale: Fully adjustable from 10 to 1600 metres.
  • Phased Ranges: Fully adjustable in 10, 50 or 100mtr. steps.
  • Range Units: Feet, Fathoms, Metres, Braccia
  • Expansion Ranges: From 3 to 100 metres.
  • Pulse Repetition Rate: Max. 10/sec.
  • Gain: From 1 to 100%
  • TVG: From 1 to 100%
  • Functions: Noise Filter, Daylight/night colours, Digital Depth on Screen, Diagnostic Page, Alarms for Deep and Shallow water, Optional Printer, Remote Keypad Operation, Threshold, Draft Adjustment, Velocity Adjustment.
  • Data Input: NMEA 0183 - Navigation data, Trawl Position from Simrad ITI or Scanmar systems.
  • Data Output: NMEA 0183 - Depth data.
  • Display: Not included. VGA monitor required.
