Suzuki ES2035

Click image for a larger view

Recommended For:

  • Large Commercial Vessels
  • Recreation
  • Coastal Fishing
  • Commercial Fishing
  • Workboats

Find Your Nearest Dealer

Suzuki ES2035

Recommended For:

  • Large Commercial Vessels
  • Recreation
  • Coastal Fishing
  • Commercial Fishing
  • Workboats

Ask Us a Question

Please fill in the short form below with your question, either about the Suzuki ES2035, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

Suzuki ES2035

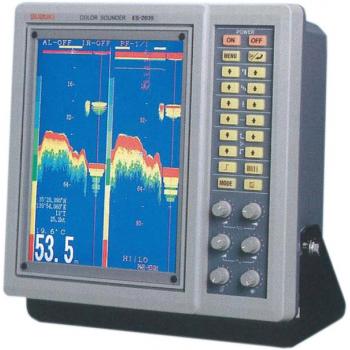

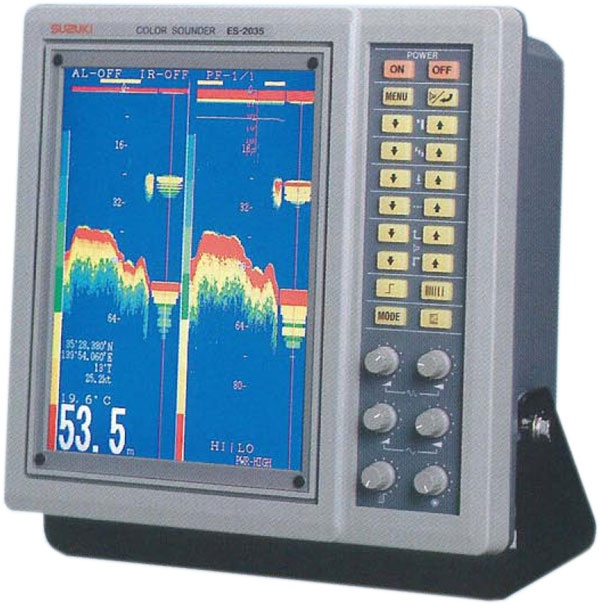

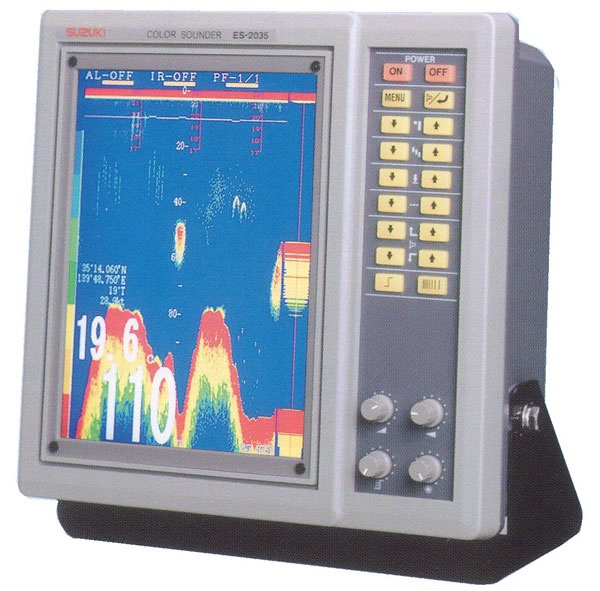

The ES 2035 Echosounder from Suzuki is available in Single or Dual frequency versions. The compact design, easy installation, user friendly operation, and Suzuki's renowned build quality, make the ES2035 the ideal choice for your next echosounder. Call us to find out more on this winner from Suzuki.

  • Power Supply: 10.5-40v. DC 25W.
  • Frequency: Single 50 or 200Khz. Dual 50/200 Khz.
  • Transmit Power: 50Khz. - 600W or 1kW., 200Khz. - 600W.
  • Ranges: 0 to 5, 10, 15, 20, 30, 40, 50, 60, 80, 100, 150, 200, 300, 500, 1000, 1500, 2000 Meters
  • Depth Readout Units: Feet, Fathoms, Metres or Braccia
  • Phased Range: Upper limit may be set to 2/5 of Range between 0-999
  • Partial Expansion: Available as a combination of range and phased range.
  • Bottom Expansion: 0 to 1, 2.5, 5, 10, 20, 50, 100, 250
  • Display Modes: Single Frequency - Normal Bottom Expansion, A-Scope, Navigation
  • Display Modes: Dual Frequency - 50Khz. Normal, 200Khz. Normal, 50/200Khz. Dual Frequency, Small Target, Bottom Expansion, A-Scope, Navigation.
  • Functions: Auto Range, Auto Phase, Picture Speed, Colour Selection, Transmit Power, Gain, STC, Threshold, Alarms, User Settings, Expansion Modes, White Line
  • Data output: Depth NMEA 0183
  • Data input: Navigation data NMEA 0183
