Scanstrut Pole Mounts

The Scanstrut Range of Pole Mounts offers the perfect solution for installing your Satcom or radar antenna. Versatile and completely stable once fitted, all mounting options are made from only the best marine-grade materials and offer a 100% reliability track record. Achieve an aesthetically pleasing look for your installation overall by choosing a Scanstrut Pole Mount.

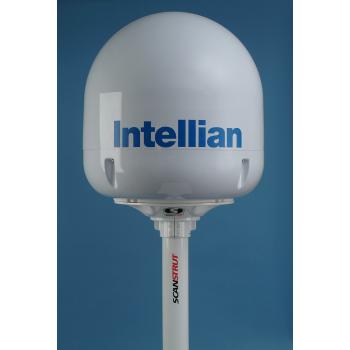

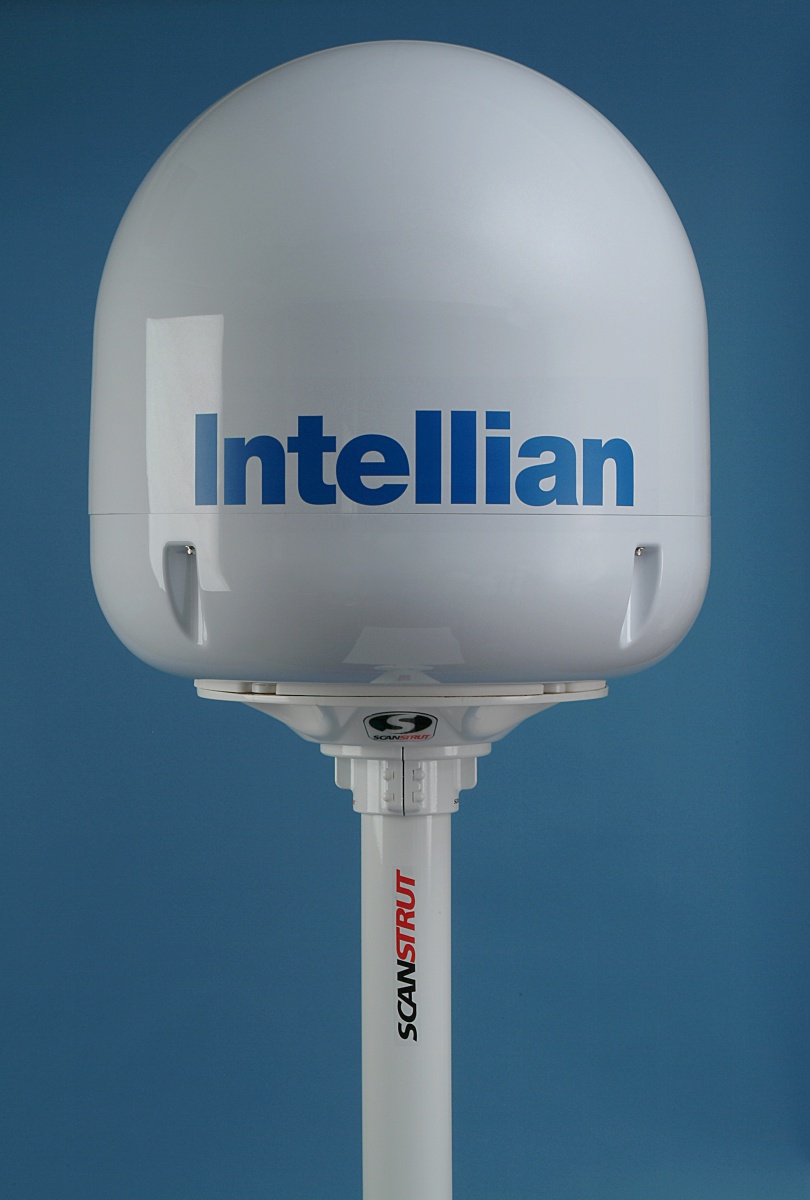

SC2 Pole Mount

For Radomes, Open Array and Larger Satcom/TV Antennas

With a 100% reliability track record through the toughest sailing conditions, the SC2 Pole Mount is the preferred choice for offshore sailors the world over.

Available as a deck mounted or through deck installation, it is supplied with pole, base and top plate as a complete kit.

Please note an additional Satcom Antenna Mount will be required to install 40cm and 60cm satcom antenna.

Deck Mounted

Ideal for installations on decks, cabin roofs, low arches and other areas where minimal elevation is required.
* 1.0m (3.3’) height
* Pre-drilled mounting holes for a quick and easy installation
* Base supplied to support shorter pole length – no support struts are required

Thru Deck Mounted

The ideal installation for blue water yachting and designed for yachts from 12m (40') upwards. Mounted through-deck to provide maximum stability for taller installations and heavier antennas.
* 3.0m (10’) or 4.0m (13’) heights*
* Recommended minimum of 0.6m (20”) below deck

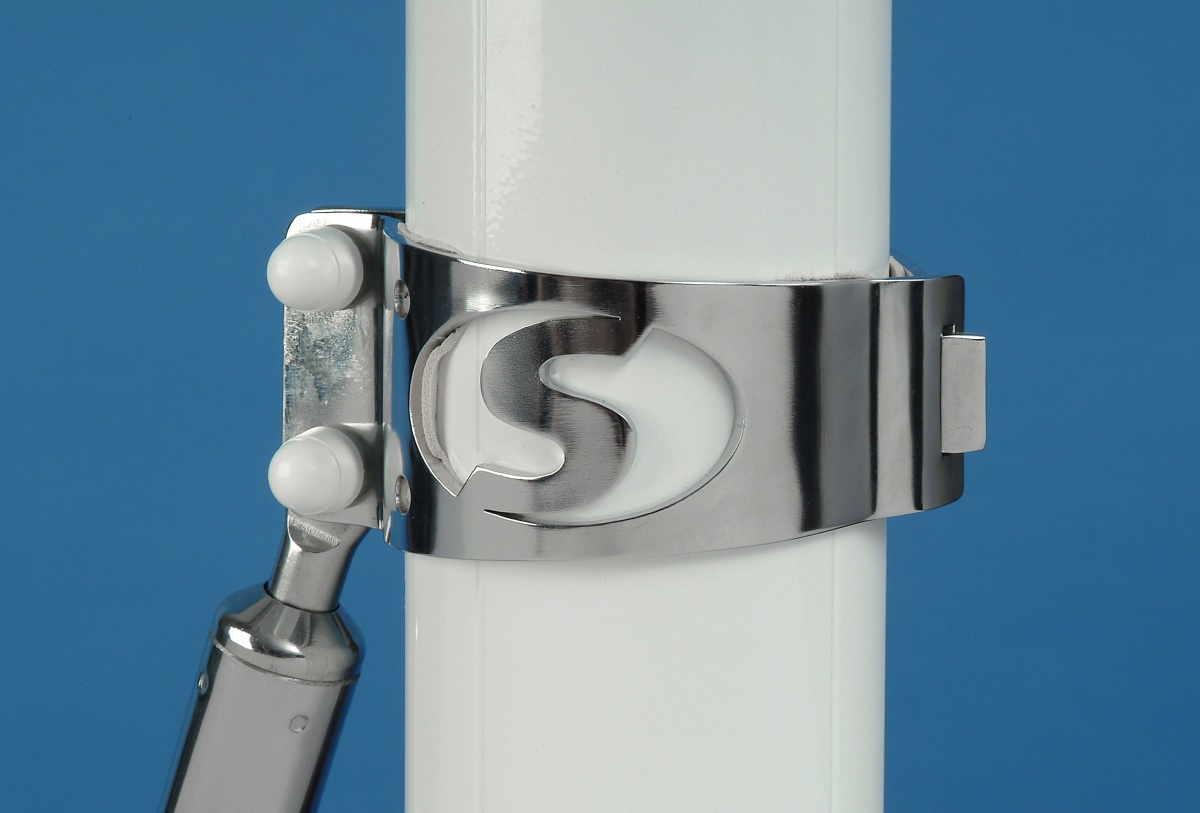

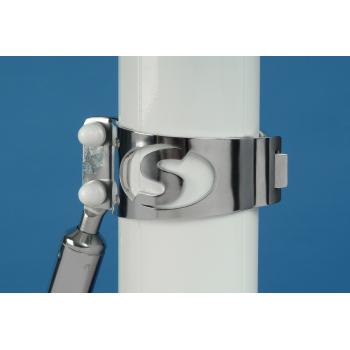

* A unique collar system clamps pole at deck level and also at its base inside the boat
* A GRP base can be laminated to the inside of the hull and provides level mount for lower set of collars.

SC100 Pole Mount

Totally universal, the SC100 Pole Mount installs your radar or satcom antenna onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.

New look 360° Adjustable Base

New look anodised aluminium base gives choice when deciding where you wish to install the pole mount. Base enables pole to be installed on both sloping transoms and level decks.

Unique Pole Extrusion

Accommodates two cable channels with a cover strip to hold cables in place and out of view.

Stable Installation

Have confidence in your installation – you are supplied with two support modules which provide maximum fore / aft and sideways support.

EEasily Removed

Unscrew base and remove pole for racing or winter storage, leaving just low profile base on deck.

Choice of Height

1.9m (6.4’) recommended for deck mounting and 2.5m (8.3’) recommended for transom mounting.

Marine Grade Materials

6082 Aluminium pole with a polyester powder coat for a durable and gloss white finish.
