Simrad AR81/83 Bearing

Click image for a larger view

Recommended For:

  • Large Commercial Vessels
  • Commercial Fishing
  • Workboats
Simrad AR81/83 Bearing

Recommended For:

  • Large Commercial Vessels
  • Commercial Fishing
  • Workboats

Ask Us a Question

Please fill in the short form below with your question, either about the Simrad AR81/83 Bearing, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

Simrad AR81/83 Bearing

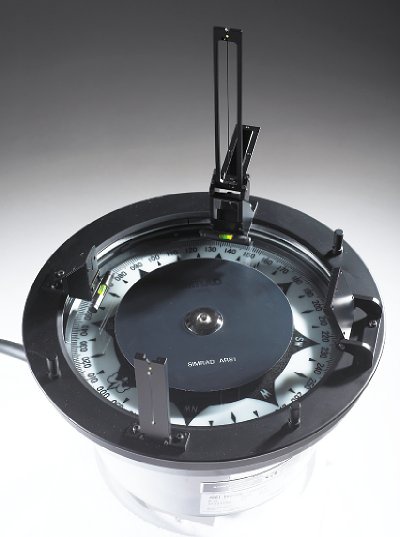

The Simrad AR81 and AR83 Bearing repeaters have been designed to accept a variety of digital inputs that are sensed when first switching on the repeater. The AR81 is the single scale repeater and the AR83 is a dual scale Bearing repeater.

The Simrad AR81/83 Bearing repeater accept serial data (RS422). The D-type connector has pins allocated for power and serial data. The serial input is configured to recognize NMEA 0183 HDT, HDG and HDM sentence structures in priority order.

The Simrad AR81 and AR83 Bearing repeaters are designed to be mounted in a BB Repeater holder, MB repeater holder or BH repeater stand. The repeaters should be mounted where it is most convenient for the user, with regard to the unit’s environmental protection, temperature range and cable length. The unit should not be installed in area exposed to heavy vibrations. Avoid mounting the repeater where it is easily exposed to sunlight, as this will shorten the lifetime of the display.

Both the Simrad AR81 and AR83 Bearing repeaters are wheelmark approved for Simrad GC80/85 gyro systems.
