Skipper CD401 Compact Multi

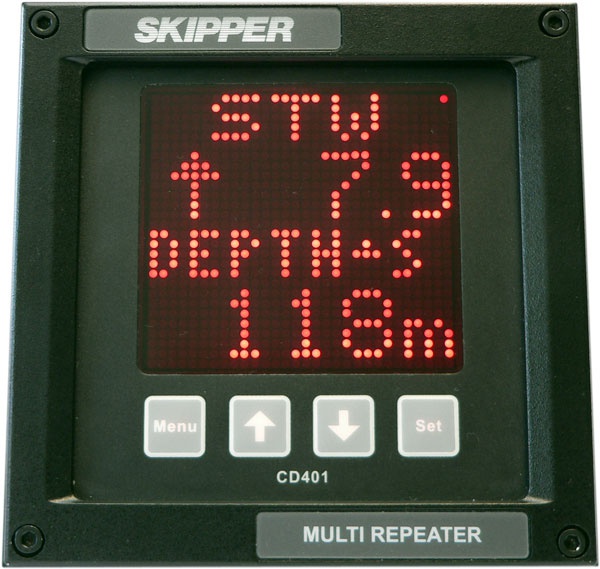

The Skipper CD401MR is a remote multi repeater for NMEA signals. It is designed for use with Skipper products together with products from other manufacturers, when these have an NMEA 0183 output.

The Skipper CD401MR allows you to display any of the following in an easy to read display.

  • Depth below surface, keel and transducer
  • Speed over ground and through water
  • Distance, total/trip for both ground and water
  • Heading, true, magnetic and relative
  • Rotation, rate of turn and direction
  • Wind speed and direction (true, magnetic and relative)
  • Temperature in water and air
  • Drive, RPM, propeller pitch and rudder position
  • Clock UTC, local time and expected time of arrival

The CD401MR is part of the skipper family of repeaters designed to provide the information you want, when you need it.

Features:

  • Power supply DC: 24 V (18-32)
  • Power consumption 30W at 24V
  • Display: Up to 4 lines with LED
  • Dimensions: 144 x 144mm to DIN standard
  • Panel Cutout: 124 x 124mm
  • Output: 2 x NMEA
  • Inputs: Remote dimmer input
  • Depth: DPT, DBK, DBT, DBS
  • Speed: VBW, VTG, VHW
  • Distance: VLW
  • Heading: VTG, VHW, THS, HDT, HDM, HDG
  • Rotation: ROT
  • Pitch and Roll: XDR
  • Wind: MWV, VWR, VWT, MWD
  • Temperature: MTA, MTW, MDA
  • Drive: RPM, RSA
  • Clock: ZTG, ZDA, GGA, RMC
  • Auxiliary: User define
  • Service: Worldwide, in all major harbours through Dealer network.
