Actisense QNB-1 Quick Network Block

Click image for a larger view

Recommended For:

  • Large Commercial Vessels
  • Recreation
  • Coastal Fishing
  • Scientific Research
  • Commercial Fishing
  • Workboats

Downloads:

Actisense QNB-1 Quick Network Block

Recommended For:

  • Large Commercial Vessels
  • Recreation
  • Coastal Fishing
  • Scientific Research
  • Commercial Fishing
  • Workboats

Ask Us a Question

Please fill in the short form below with your question, either about the Actisense QNB-1 Quick Network Block, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

Actisense QNB-1 Quick Network Block

Expand the connection options of an NMEA 0183 device, or create a flexible NMEA 2000 network with multiple drops and power distribution.

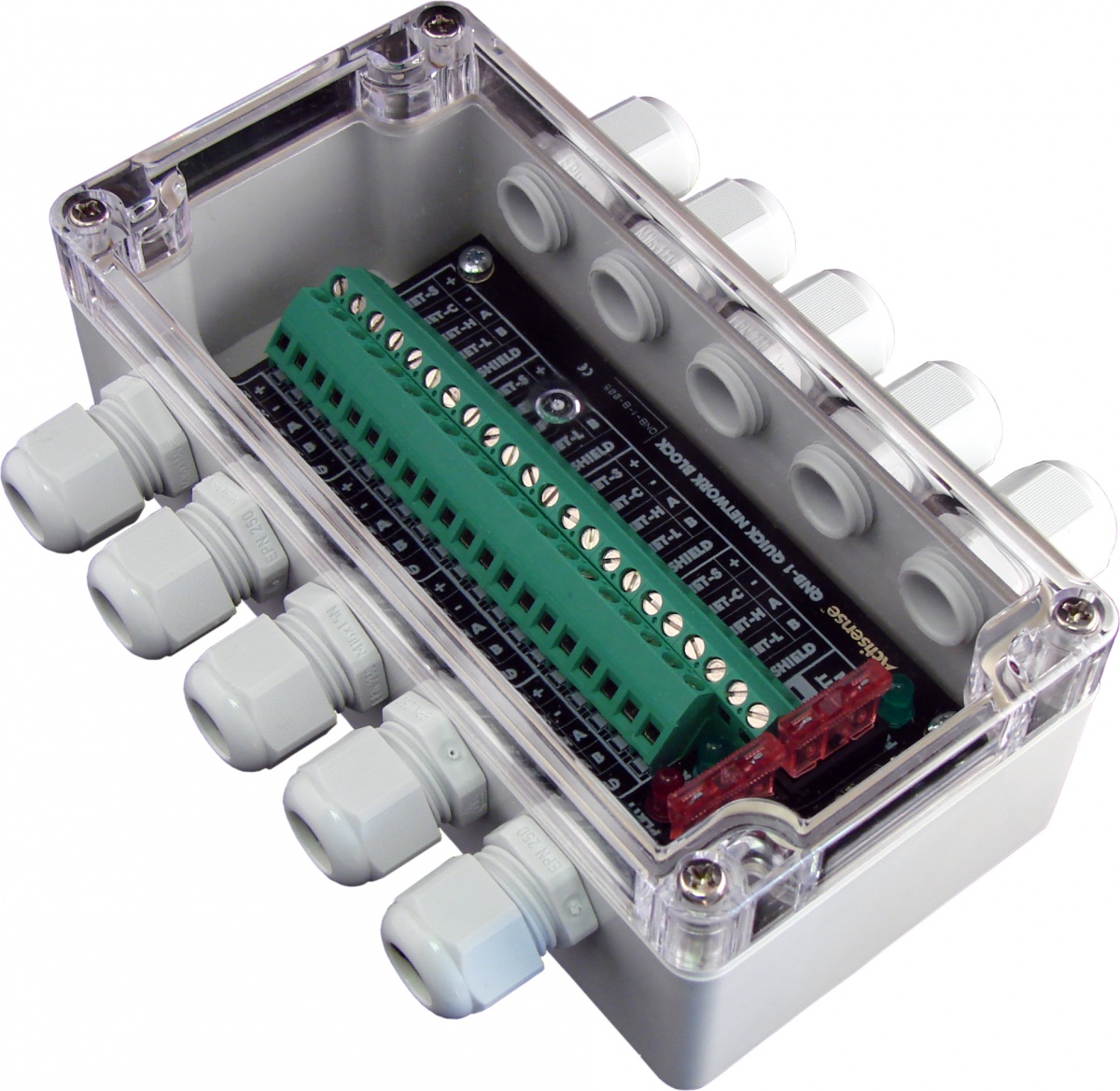

This Actisense® Quick Network Block (QNB-1) allows backbone networking connections to be made easy and fault-free on National Marine Electronics Association (NMEA) buses and networks.

The QNB-1 is two products in one, being compatible with both NMEA 0183 buses and NMEA 2000 networks.

NMEA 0183

When used on an NMEA 0183 bus, the QNB-1 provides an easy junction box to connect multiple NMEA 0183 devices together. An NMEA talker device is connected to one of the network connection points, while each NMEA listener device is connected to the remaining connection points. No amplification or isolation buffering is included in the QNB-1 - if this is important, the NMEA Buffer (NBF-2) should be used instead.

NMEA 2000

When used on an NMEA 2000 network, the QNB-1 is a multi-drop network backbone connection block, adhering to the barrier strip connection type detailed in the NMEA 2000 specification. This allows for 2 backbone connections (in & out), up to 6 drop connections and a power entry point.

The power entry connection is protected by two 4 Amp fuses, providing current protection to each half of the network backbone.

Useful LED indicators show power status, detect a power reversal, indicate whether the fuses are still intact, and detect the presence of data on the connected bus or network.
