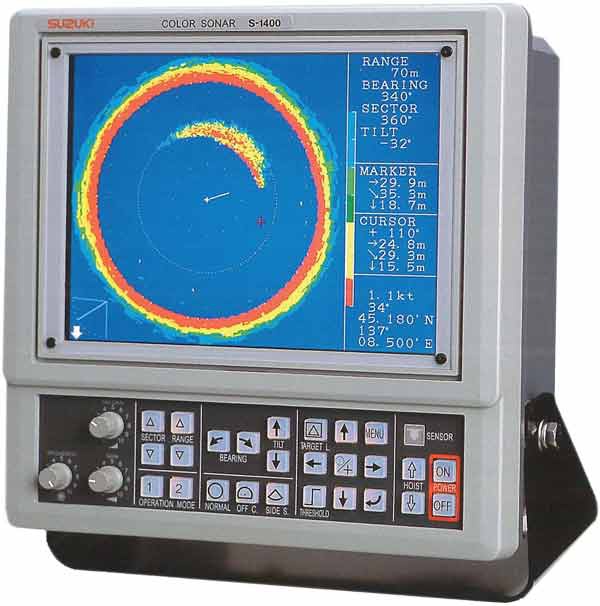

Suzuki S-1400

Click image for a larger view

Recommended For:

  • Recreation
  • Coastal Fishing
  • Commercial Fishing
  • Workboats

Find Your Nearest Dealer

Downloads:

Suzuki S-1400

Recommended For:

  • Recreation
  • Coastal Fishing
  • Commercial Fishing
  • Workboats

Ask Us a Question

Please fill in the short form below with your question, either about the Suzuki S-1400, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

Suzuki S-1400

Suzuki are the first manufacturer to produce a compact and powerful sonar designed especially for small vessel owners. The S-1400 is based on an entirely new design and, with it's amazingly small 4" soundome, the S-1400 brings the cost of sonar ownership within the reach of everyone.

Leisure craft owners can also benefit from the S-1400's small size and ease of installation.

Operating at 200Khz., with an 800w. transmitter built into the display unit, the S-1400 is truly a powerful sonar for small vessels.

Specification

  • Power Supply: 20-30v. DC 70w. For 12v. vessels a DC/DC converter is required.
  • Frequency: 200kHz
  • Transmit Power: 800W
  • Ranges: 0-10-100 in 10 steps (metres) 100-300 in 20 steps (metres)
  • Range Units: Feet, Fathoms, Metres
  • Sector Angles in Sonar Mode: 5° Steps 5, 25, 45, 85, 125, 165, 205, 360
  • Sector Angles in Sonar Mode: 10° Steps 10, 30, 50, 90, 130, 170, 210, 360
  • Bottom Scan Mode: 3° Steps 3, 27, 45, 63, 93, 117, 147, 177
  • Bottom Scan Mode: 5° Steps 5, 25, 45, 65, 95, 115, 145, 175
  • Display Modes: Sonar Mode+Data Display / Off-center Mode + Data Display / Bottom Scan Mode + Data Display
  • Tilt Angle: +5° to 90° in 1° Steps
  • Stroke: 120 to 200mm
  • Raise/Lower Time: 7 seconds
  • Maximum Speed: 15 Knots cruising, 10 Knots when being Raised/Lowered
  • Functions: 2 Operation Modes, Off-centre, Train Correct, Power Reduction, Pulse Width, Colour Selection, Gain, Dynamic Range, Noise Reduction, Stabiliser, Threshold, Brightness, Hoist Sensor Indicator, Interference Reduction, TVG, Tilt, VRM.
