Suzuki S-1900 Sonar

The S-1900 sonar series from Suzuki is available in a number of configurations, to suit a wide range of applications. Available in three frequencies, 80, 140 and 180 KHz., and with a choice of 12.1" or 15" Colour TFT screens from Suzuki, or a black box version to allow you to use your own display,the S-1800 is a feature packed sonar series.

Specification

Models:

  • S1900H80: Searchlight, 80kHz, Choice of M12 or M15 TFT Display or MBB Control Unit for own Display
  • S1900H140: Searchlight, 140kHz, Choice of M12 or M15 TFT Display or MBB Control Unit for own Display
  • S1900H180: Searchlight, 180kHz, Choice of M12 or M15 TFT Display or MBB Control Unit for own Display

Power Supply:

  • M12 Display: 10.5 to 30vDC
  • M15 Display: 20 to 30vDC

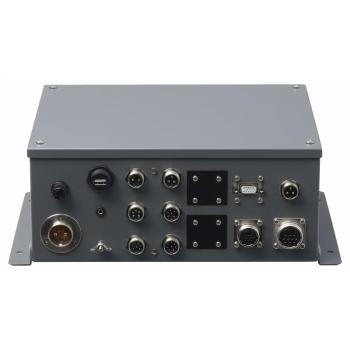

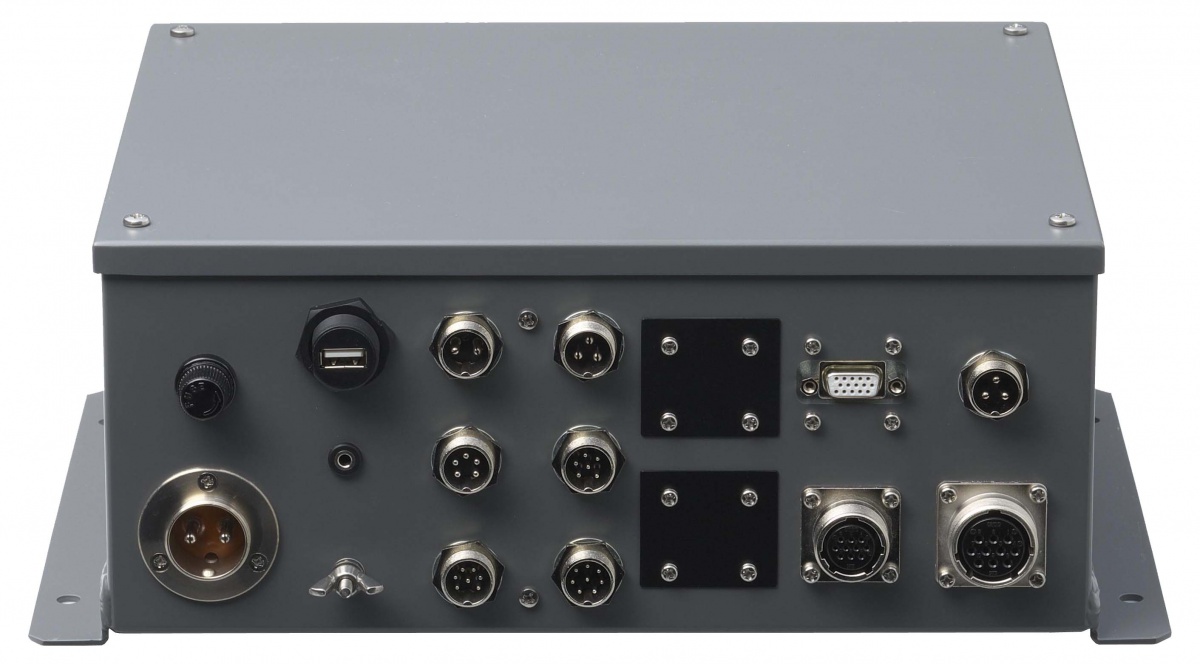

  • Black Box System: 10.5 to 30vDC.

Hull Unit Weight:

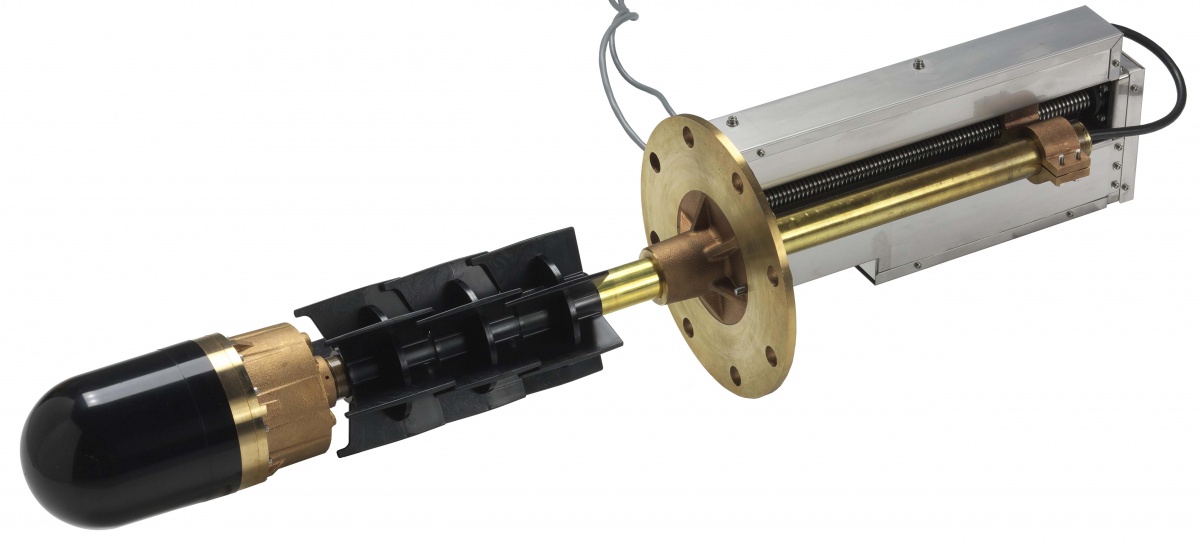

  • H80, H140, H180: 33Kg

Features:

  • Sector Angle: 5 - 360 degree (Sonar mode), 3 - 177 degree (Side scan mode)
  • Ranges: 8 ranges from 0 to 10 to 2000m
  • Range Units: Feet, Fathoms, Metres, Braccia
  • Tilt Range: +5° to -90°

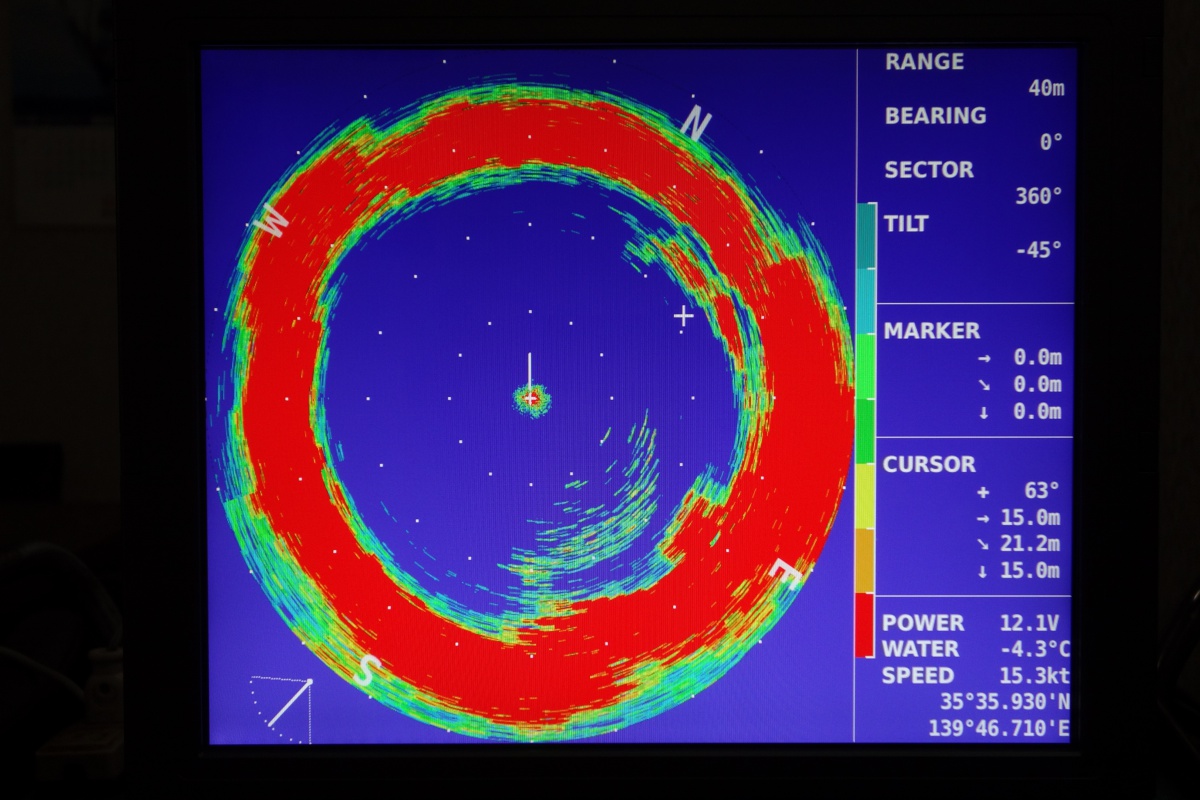

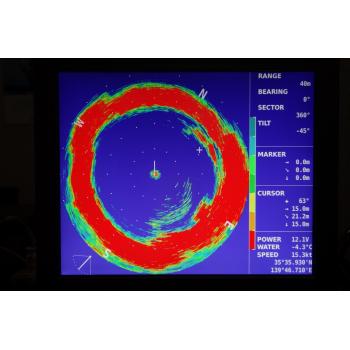

  • Display Modes:Sonar Mode + Info, Off-centre Mode + Info, Bottom Scan Mode + Info, Full-Screen Sonar Mode (360 degree coverage), Sounder Mode + Info.
  • Data Display: Range, Range scale, Tilt, Tilt diagram, Depth,
     Bearing center angle, Ring marker, Cross cursor, Interference reduction, TVG graph, Color scale, Gain, Scanning image, Position of ship, VRM, Sector angle, Water Temperature.
