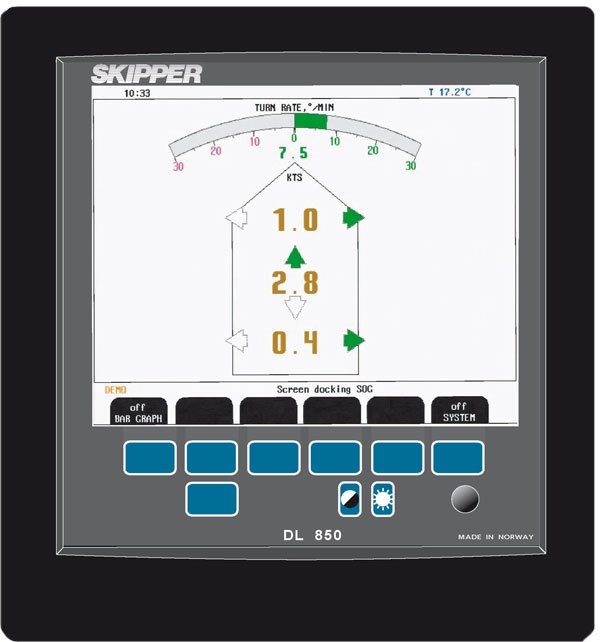

Skipper DL850 Dual Axis Doppler

The Skipper DL850 Dual Axis Speed Log has been built to exacting standards for the world's Merchant and Fishing fleets. The DL850 has been developed by Skipper's Research and Development team and is based on their long association with vessel owners around the world. Sophisticated, yet easy to use, the DL850 is the ultimate Doppler log.

The Skipper DL850 Speed Log System employs the very latest in computer-based technology for use on Merchant and larger fishing vessels. Information is presented on a bright colour LCD screen and the system is controlled and configured via six softkeys, making operation simple to learn. A choice of screen presentations allow the operator to see at a glance vital information on the vessel's speed and drift.

The DL850 has a built in echosounder function for depths down to 100 metres and can be interfaced to most electronic devices found on today's modern vessel.

Specification

  • Power Supply: 110/22v. AC 50/60Hz. 20-40v. DC
  • Maximum Consumption: 100W
  • Display: 150x200mm Colour LCD with adjustable backlight
  • Memory: Retains operational settings
  • Speed Range: 0-40 knots in both axis
  • Bottom Lock: 1-75 metres
  • Water Track: Less than 3 metre below sensor
  • Frequency: 540Khz. 4x5.5 degree beam
  • Accuracy: 0.2% of speed
  • Outputs: Analogue 0-10v and 4-20mA : NMEA 0183/RS232/RS422: VGA for Remote Display : Analogue signals for Remote Indicator : Interface for external printer
  • Languages: English, French, German, Spanish, Russian and Norwegian
  • Classification: Wheelmark Approved
  • Scope of supply: DL850 Control Cabinet, Junction Box, Sensor with cable and Stainless Steel Gate ValveT
