Skipper EML224 Compact Single or Dual Axis

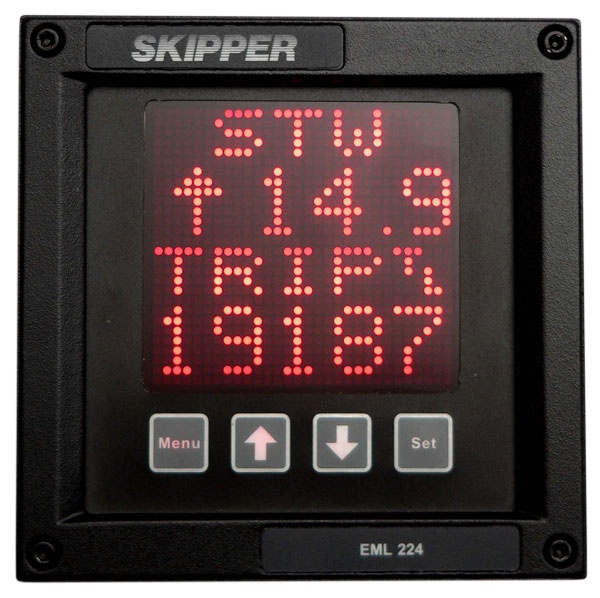

The Compact EML224 Electromagnetic Speed Log from Skipper provides a smaller more compact operator unit (display).

The EML224 Compact is available in single or dual axis, making it more flexible depending on customers needs and demands.

Features

  • Water speed in single or dual axis
  • Compact Display 144 x 144mm
  • Sea Temperature readout
  • NMEA0183 and Analog pulses output
  • 1 Programmable contact closure
  • Available in Single or Double Bottom Sea Valve or Tank
  • Speed Alarms : High and low speed limits, power failure, sensor failure
  • Outputs: 2 x NMEA 0183, 1 x contact closure (pulse), Alarm (relay), Fitness
  • Inputs: 1 x NMEA0183 (Opto Isolated), External dimming (pulse)
  • NMEA Outputs: Speed VBW, VHW ; Distance VLW ; Others MTW (temp)

EML124 Compact

  • Number of Axis : 1
  • Speed range longitudinal: +/-40
  • Water Track (from): 0
  • Accuracy (better than): 0.2
  • Temperature accuracy error: less than 1

EML224 Compact

  • Number of Axis : 2
  • Speed range longitudinal: +/-40
  • Speed range transversal: +/-40
  • Water Track (from): 0
  • Accuracy (better than): 0.2
  • Temperature accuracy error: less than 1
