eXcel@Sea VSAT

Click image for a larger view

Recommended For:

  • Large Commercial Vessels
  • Coastal Fishing
  • Scientific Research
  • Commercial Fishing
  • Workboats

Downloads:

eXcel@Sea VSAT

Recommended For:

  • Large Commercial Vessels
  • Coastal Fishing
  • Scientific Research
  • Commercial Fishing
  • Workboats

Ask Us a Question

Please fill in the short form below with your question, either about the eXcel@Sea VSAT, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

eXcel@Sea VSAT

We understand the increasing need to keep in touch onshore, whether this be for your logbook onboard or to keep in touch with the family, the need for fast reliable communications is increasing. Echomaster Marine have therefore introduced our eXcel@Sea VSAT System.

eXcel@Sea couples a reliable Marine stablized antenna with fast, dependable airtime providing a VSAT system you can rely on.

Features

  • 60cm VSAT Dome
  • Dedicated Telephone number with Area code of your choosing
  • Unlimited Internet Usage
  • Free calls to One UK landline Number
  • One VoIP Telephone System
  • One Wireless Access point for Wheelhouse Wireless distribution.
  • Invoicing for Hardware and Airtime in GBP
  • No Set up Fees or hidden costs
  • Fast data Speed - Airtime options to suit you.

eXce@sea VSAT allow you to have access to the internet 24 hours a day. This will provide a fast and reliable connection for your electronic logbook. A wired connection can be established in the wheelhouse. We also provide a Wireless access point which will establish a wireless connection for use with your mobile devices or wireless enabled laptops. It is also possible to install additional Wireless access points, for example in the mess, providing wireless connection below deck.

eXcel@sea-60

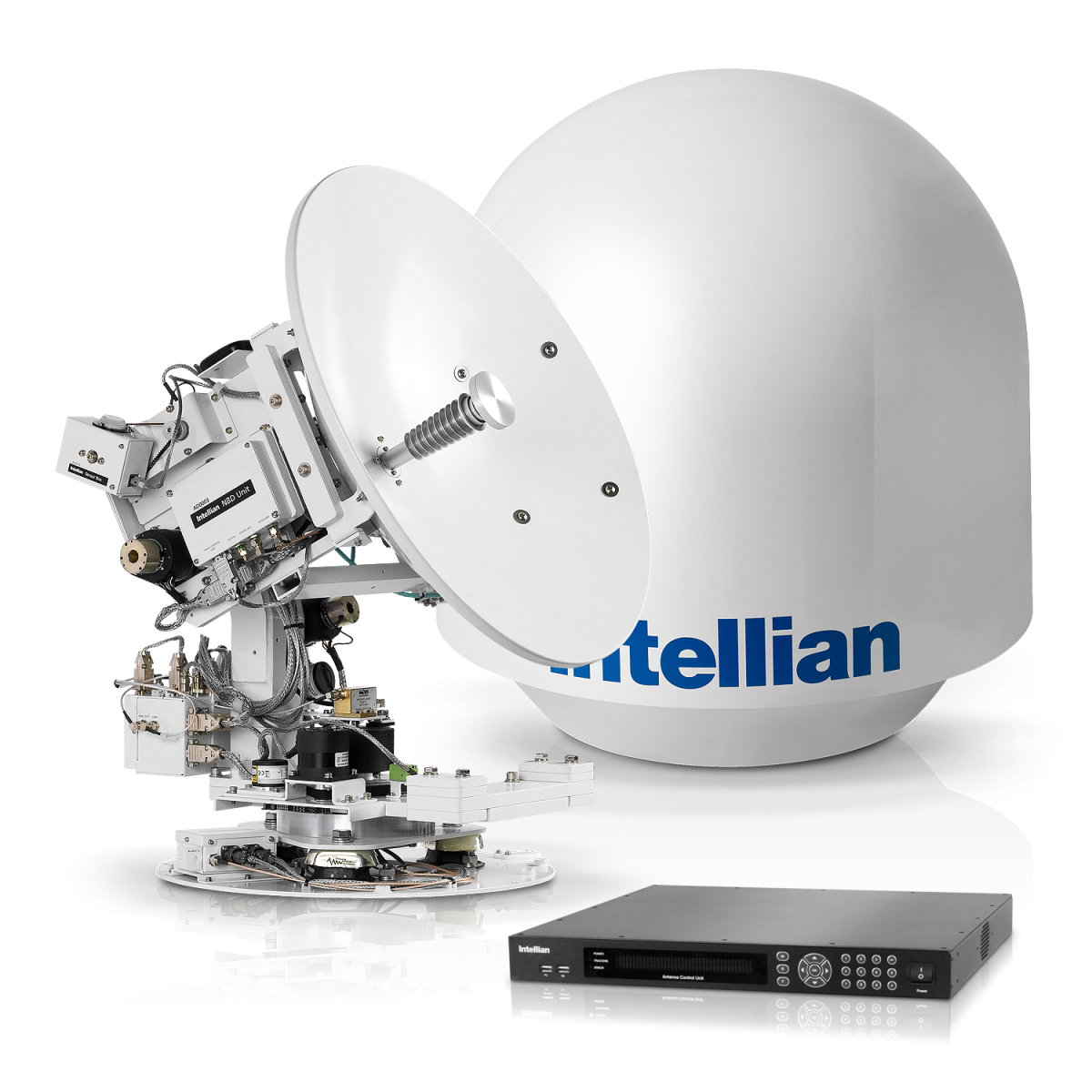

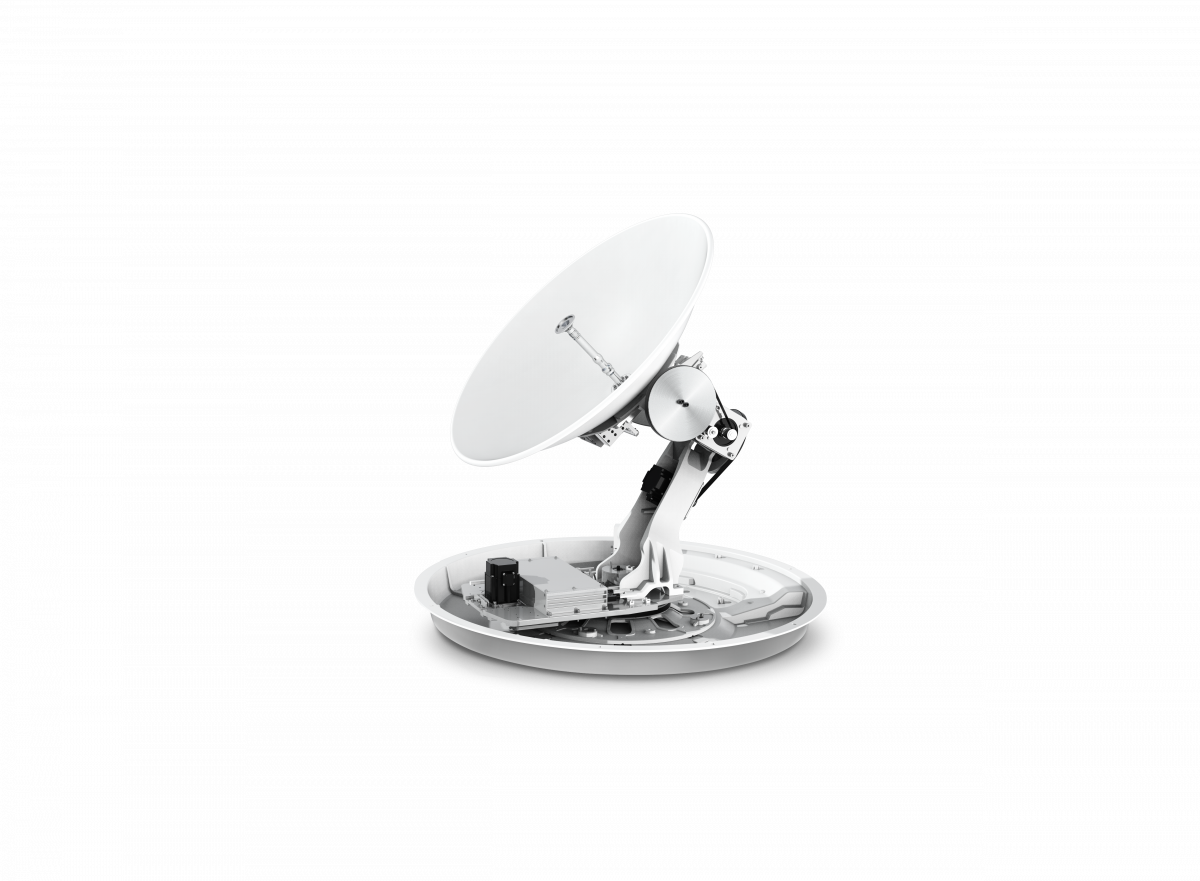

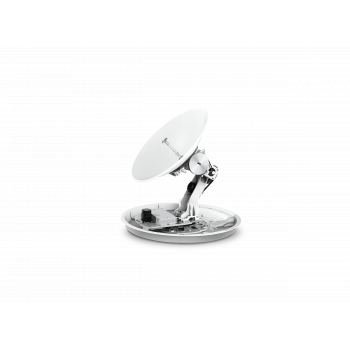

The 60cm Marine Stablized Dome is a fully integratedKu-band stabilized maritime VSAT system that acquires and locks onto the satellite without requiring a separate input from the ship’s gyro-compass. This allows you to have a reliable, “always-on” broadband connection at sea.

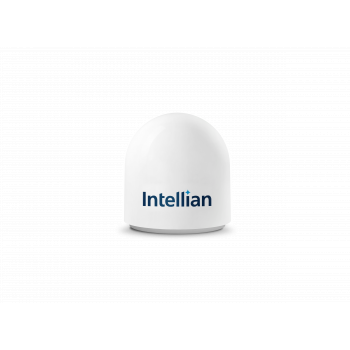

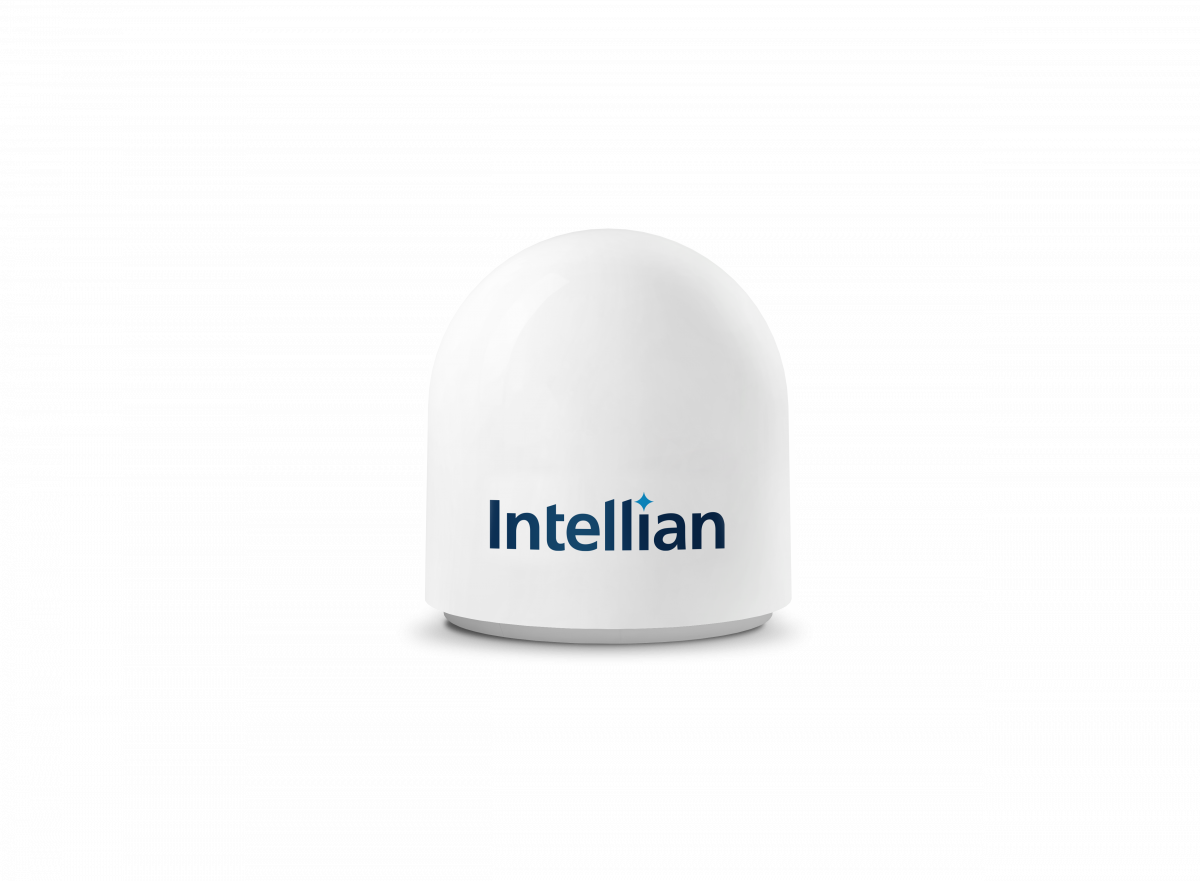

The eXcel@Sea 60cm Dome has compact radome design so smaller vessels can fit the system even with space constraints. The dome has an unlimited azimuth range for continuous tracking without unwrapping the cables in the antenna. The wide elevation range from -10° to 100° enables the v60G to have seamless signal reception while the vessel is traveling near the Equator or Polar Regions.

With its 3-axis stabilization platform, the dome has superior tracking performance that is nearly equal to the 1 meter grade VSAT antenna system. The system can be configured for SCPC, broadband or hybrid satellite networks. It is suitable for high-speed internet, weather & chart updates, email, file and image transfer, video conference, VoIP, VPNs and database backup. The v60G is designed and built to meet or exceed industry and military standards for vibration, shock and EMC to ensure greatest reliability in any sea conditions.

The system has a built-in GPS for fast satellite acquisition and auto polarization control for optimizing the signal strength of a linear polarization feed. The 60cm eXcel@sea dome is the ultimate choice for mariners who are seeking a commercial-grade broadband experience with a compact, robust and cost-effective solution.

eXcel@sea-80

The eXcel@sea-80 is a fully integrated 83cm Ku-band stabilized maritime VSAT system that acquires and locks onto the satellite without requiring a separate input from the ship’s gyro-compass. This allows you to have a reliable, “always-on” broadband connection at sea.

This dome is the smallest antenna that works without the need for a spread spectrum satellite network transmission. This provides a compact system in a TDMA or SCPC transmission format. The higher-gain performance design enables the antenna to operate on the fringes of the signal footprint with superior operation.

With its 3-axis stabilization platform, the dome also has the superior tracking performance found its smaller 60cm brother,. This system can also be configured for SCPC, broadband or hybrid satellite networks. It is suitable for high-speed internet, weather & chart updates, email, file and image transfer, video conference, VoIP, VPNs and database backup. The v80G is designed and built to meet or exceed industry and military standards for vibration, shock and EMC to ensure greatest reliability in any sea conditions.

The Antenna Control Unit (ACU) supports Wi-Fi connectivity for a simple remote PC connection. If the ACU is installed at a great distance from the antenna, then the built-in Bluetooth connection module inside of the antenna dome can enable a PC connection right alongside the dome.

The eXcel@sea-80 operates with just two cables to the antenna, combining TX signals and 8W BUC power in one cable and the RX signal in the second cable.
