Simrad S5100 CHIRP Module

Recommended For:

1. Recreation
2. Coastal Fishing
3. Workboats

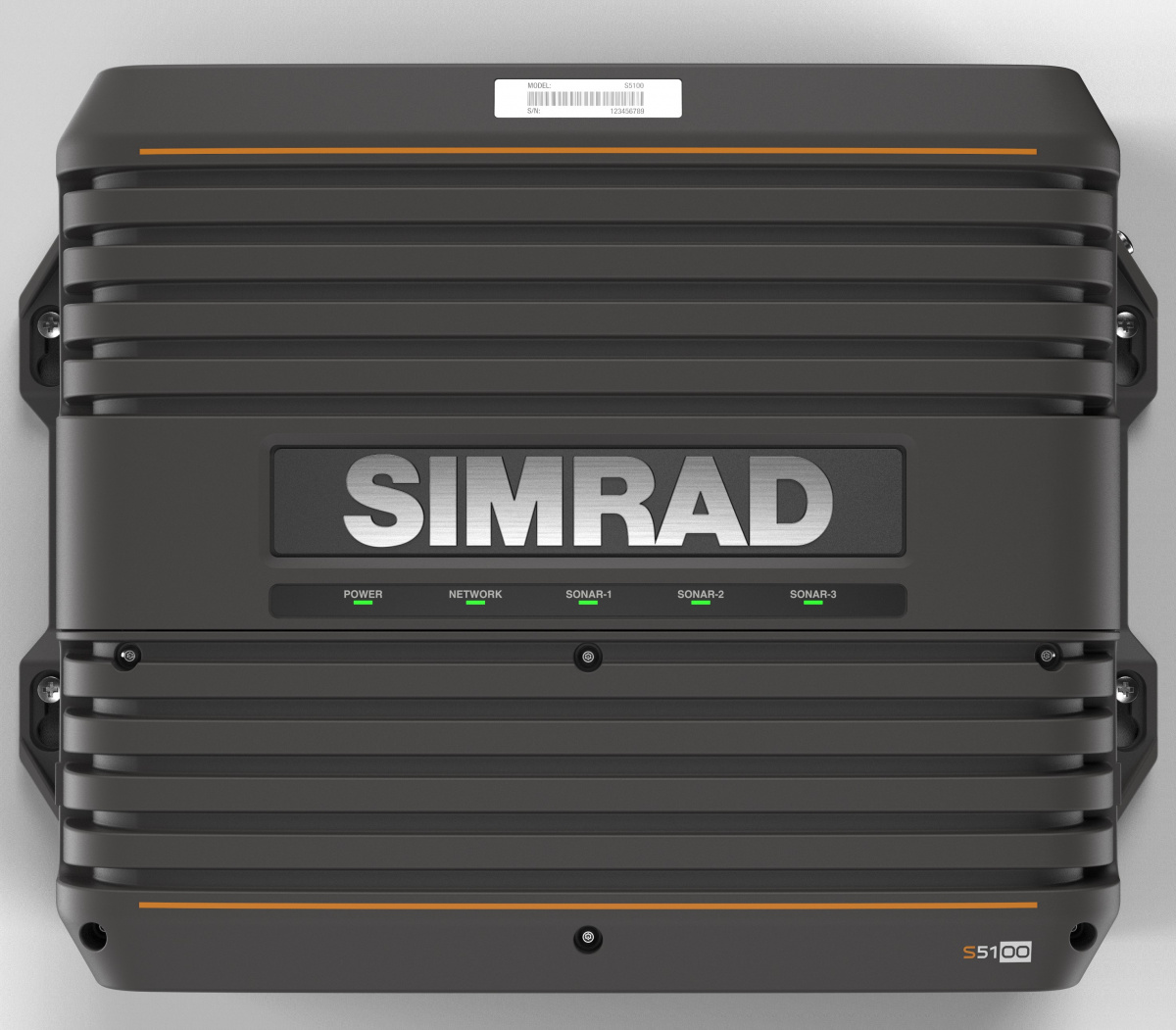

Simrad S5100 CHIRP Sonar Module

The S5100 high-performance CHIRP sonar module features three fully independent channels which are able to deliver high-resolution sonar coverage across multiple depth ranges. Simultaneous split-screen viewing capability puts you in complete control of the water column, while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.

Mix and match your favourite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines; or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.

Compatible with: Simrad NSS EVO2, NSS EVO3, NSO EVO2, S2009 & S2016

Note: A CHIRP transducer is required to complete this system. Please see related products for more information.

Key Features

• Noise-free clarity at all depth ranges
• Three fully independent sonar channels deliver high-resolution coverage
• Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
• Compatible with wide-angle CHIRP transducers for greater coverage of the water column
• Simultaneous split-screen viewing of multiple depth ranges on your display
• Maximum depth of 3,000 meters / 10,000 feet (transducer dependent)
• Easy to install with three plug-and-play 9-pin transducer connectors

In the Box

Simrad S5100 echosounder module, power cable, 1.8m ethernet cable, 3x 7-pin to 9-pin adapter cable (connects 7-pin blue plug transducers to 9-pin XSONIC black sockets)
