Simrad WBT Mini

Recommended For:

1. Scientific Research

Downloads:

• Simrad WBT Mini Data Sheet

Simrad WBT Mini

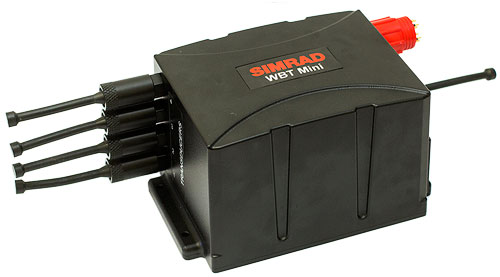

The WBT Mini is a compact version of the highly efficient Wide Band Transceiver (WBT) used by marine research vessels all around the world. The compact size and energy-efficient design of the WBT Mini make it perfect as a portable echo sounder or for installation on a wide range of platforms.

The WBT Mini supports chirp (FM) and continuous wave (CW) pulse forms. It contains four individual transceiver channels with multiplexing functionality. You can set it up for flexible split- or single beam transducer configurations.

The WBT Mini is contained in a splash-proof cabinet and the robust design allows long-term deployment in challenging environments.

Key Features

• A trusted member of the Simrad EK80 wideband echo sounder family
• Rugged and compact design
• Splash proof
• Operates in EK80 or Autonomous modes
• Four independent transceiver channels with built-in multiplexing are available
• Low power consumption
• A wide range of transducers is available

Typical Applications

• Unmanned Surface Vehicles
• Autonomous Underwater Vehicles
• Autonomous Underwater Gliders
• Portable configurations
• Fixed installations in challenging environments

Operating Modes

The WBT Mini can be operated in two different modes: EK80 mode or Autonomous mode.

EK80 Mode

In the EK80 mode, the WBT Mini is used with a computer running the EK80 echo sounder software. The EK80 software provides full control of the WBT mini via Ethernet in real-time. When used in EK80 mode.RAW echosounder data will be recorded to the computer disk(s). This mode requires one or more EK80 software licenses.

Autonomous mode

In Autonomous mode, the WBT Mini is programmed to perform a predefined mission. A mission will normally record data in intervals over a period of time using specific acoustic settings. The mission plan is designed using the EK Mission Planner software and downloaded to the WBT Mini before the mission start. When used in Autonomous mode the high resolution.RAW data are stored internally and retrieved after mission completion. The WBT Mini can be remotely controlled and monitored during a mission by sending operational commands and receiving downsampled data using the serial line interface. The Autonomous mode is an option that can be purchased separately.

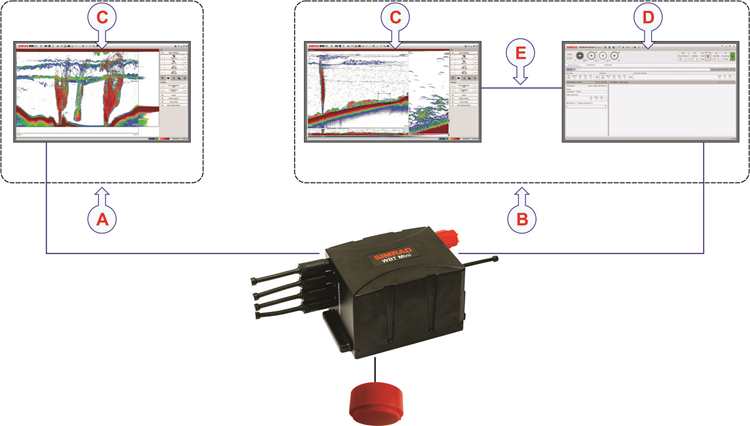

A: EK80 Mode

B: Autonomous Mode

C: Simrad EK80

D: Simrad EK Mission Planner

E Calibration and replay
