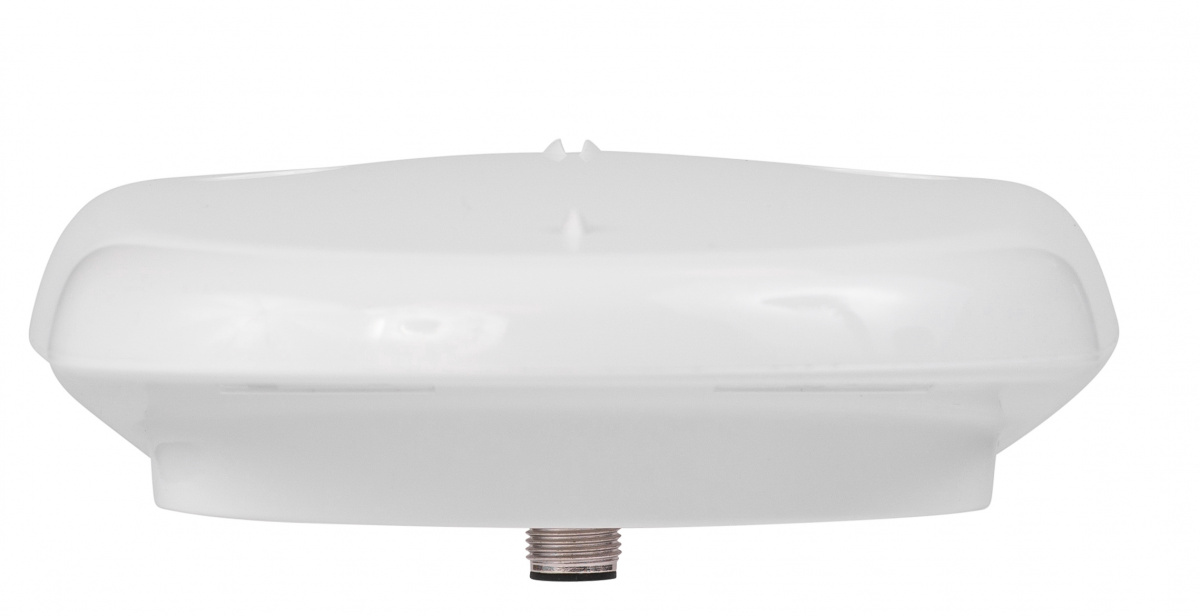

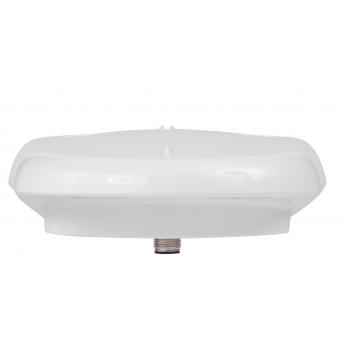

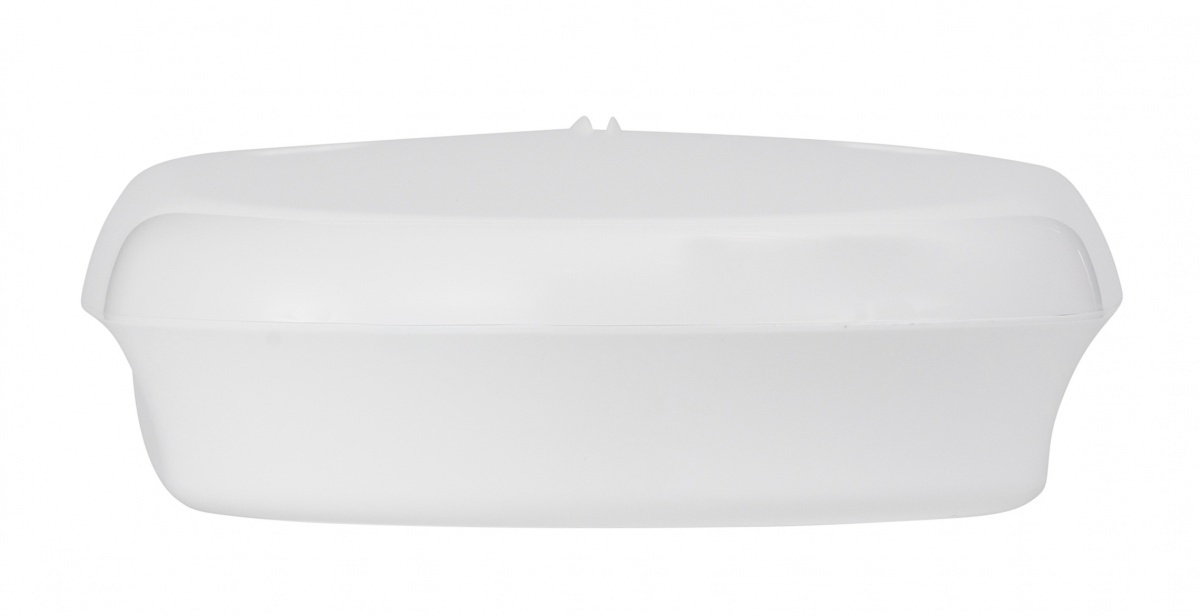

Hemisphere V200N GNSS Compass
Experience superior navigation from the accurate heading and positioning performance available with the Vector™ V200 GNSS compass. The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Hemisphere’s Atlas GNSS global correction service
The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.
Key Features
- L1 GPS, GLONASS, Galileo, BeiDou, QZSS
- 50 cm RMS world-wide positioning accuracy with Atlas corrections
- 0.75 degree heading accuracy in an amazingly small form factor
- Excellent in-band and out-of-band interference rejection
- Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
- Provides heading, positioning, heave, roll, and pitch
GNSS Sensor Specifications
- Receiver Type: Vector GNSS L1 Receiver
- Signals Received: GPS, GLONASS, BeiDou, Galileo, QZSS 7, and Atlas Channels: 424
- GPS Sensitivity: -142 dBm
- SBAS Tracking: 2-channel, parallel tracking
- Update Rate: 10 Hz standard, 20 Hz optional
- Timing (1 PPS) Accuracy: 20 ns 6
- Rate of Turn: 100°/s maximum
- Compass Safe Distance: 50 cm 4
- Cold Start: 60 s (no almanac or RTC)
- Warm Start: 30 s typical (almanac and RTC)
- Hot Start: 10 s typical (almanac, RTC and position)
- Heading Fix: 10 s typical (valid position)
- Maximum Speed: 1,850 kph (999 kts)
- Maximum Altitude: 18,288 m (60,000 ft)
- Differential Options: SBAS, Atlas (L-band)
