Koden MDC-2500BB Black Box Radar

   Buy Online

Recommended For:

  1. Workboats
  2. Recreation
  3. Coastal Fishing

Koden MDC-2000BB Black Box Radar

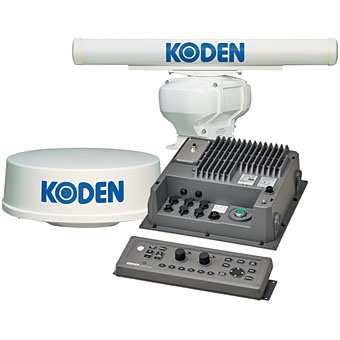

High performance, Black Box radar from Koden. The MDC-2000BB features Hyper Digital ProcessingTM (HDP) which virtually eliminates unwanted noise to provide a clearer detail image of targets.  HDP also enhances the detction of smaller targets, therefore increasing the users safety.  If using the GPS Compass option, the radar image can be shown in North Up as well as Head Up mode. The Koden MDC-2000BB black box series radar consists of the operator control panel, the antenna & the black box processor.  A monitor is required to complete your package.

Available Configurations


Dual Range

Dual range display is where 2 radar ranges are simultaneously shown on one display, e.g. the top half display can be set to 3nm for long range picture and the bottom half set to 0.75nm for a close quarter navigation picture. With a clear long range and short range picture this again increases the users safety.

True Trail Function

When connected to a heading sensor and GPS moving targets will leave a true echo trail. Stationary targets such as land and buoys leave no trail, even while your vessel is moving.

Guard Zone

A user definable guard zone warns of targets / vessels entering or leaving the zone

CCTV Camera Input

The MDC-2000 series radar can connect to CCTV cameras thus allowing you to monitor areas you might not easily see from the helm. Keep an eye on the stern when docking, work areas, the engine room, etc.

ATA with up to 50 Targets Option

ATA (Automatic Tracking Aid) is an optional extra and tracks up to 50 targets. Vessels being tracked are easily identified with a number and vector line. Detailed information such as CPA (Closest Point of Approach), TCPA (Time to Closest Point of Approach) speed, course etc can be displayed. If the automatic acquisition zone is set, up to 50 targets entering the zone will be automatically locked and tracked.

100 Target AIS Interface Option

When fitted with the optional AIS interface and connected to an AIS receiver, the MDC-2000 series radar displays information on up to 100 vessels equipped with AIS transmitters. Detailed information such as vessel name, MMSI number, speed & course can be displayed.

Key Features
